matplotlib.hatch#

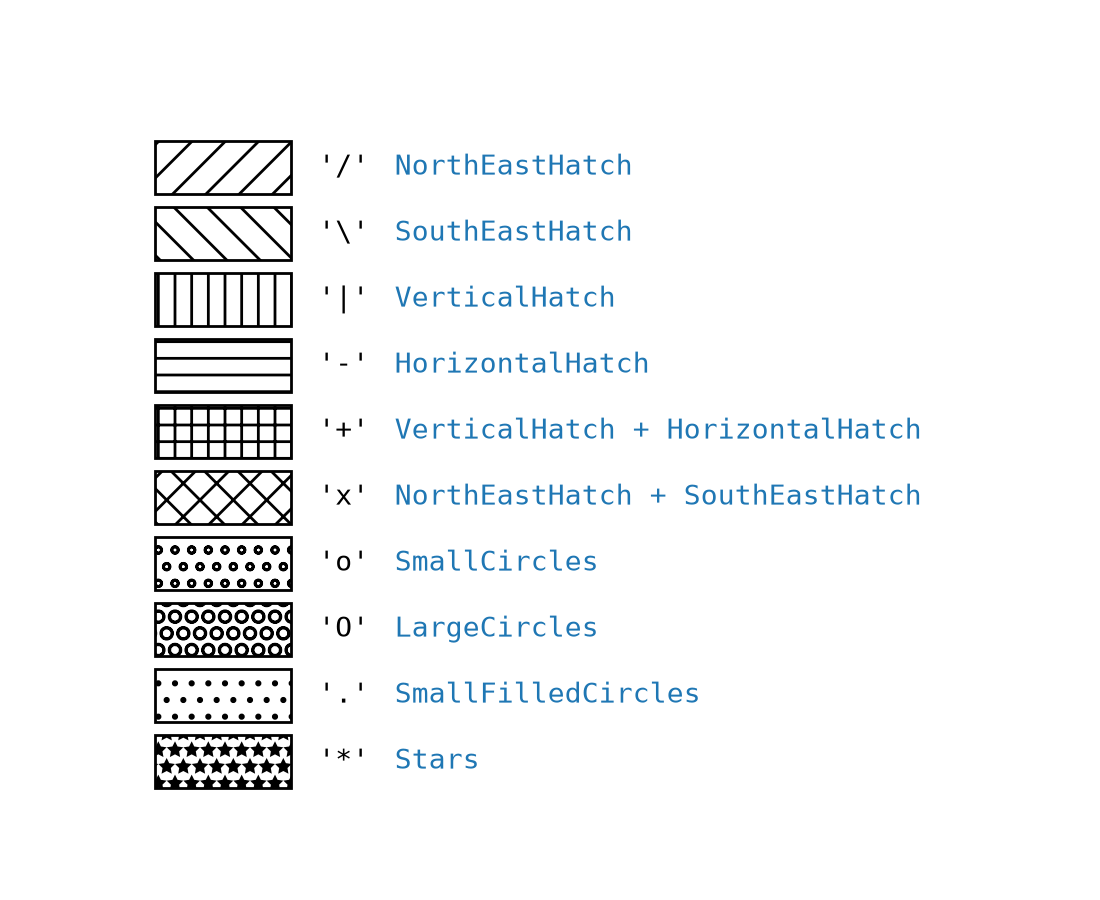

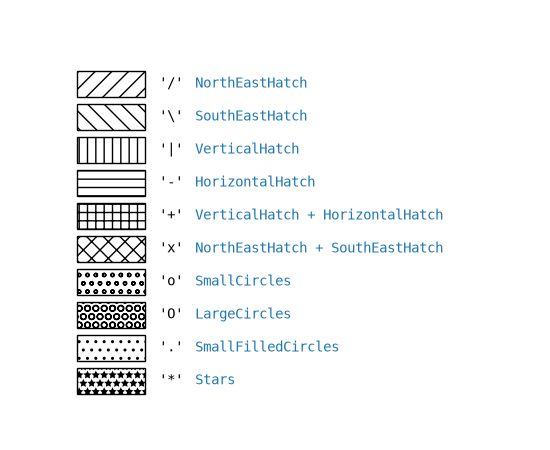

Contains classes for generating hatch patterns.

class matplotlib.hatch.Circles(hatch, density)[source]#

Bases: Shapes

class matplotlib.hatch.HatchPatternBase[source]#

Bases: object

The base class for a hatch pattern.

class matplotlib.hatch.HorizontalHatch(hatch, density)[source]#

Bases: HatchPatternBase

set_vertices_and_codes(vertices, codes)[source]#
class matplotlib.hatch.LargeCircles(hatch, density)[source]#

Bases: Circles

size = 0.35#
class matplotlib.hatch.NorthEastHatch(hatch, density)[source]#

Bases: HatchPatternBase

set_vertices_and_codes(vertices, codes)[source]#
class matplotlib.hatch.Shapes(hatch, density)[source]#

Bases: HatchPatternBase

filled = False#
set_vertices_and_codes(vertices, codes)[source]#
class matplotlib.hatch.SmallCircles(hatch, density)[source]#

Bases: Circles

size = 0.2#
class matplotlib.hatch.SmallFilledCircles(hatch, density)[source]#

Bases: Circles

filled = True#
size = 0.1#
class matplotlib.hatch.SouthEastHatch(hatch, density)[source]#

Bases: HatchPatternBase

set_vertices_and_codes(vertices, codes)[source]#
class matplotlib.hatch.Stars(hatch, density)[source]#

Bases: Shapes

filled = True#
size = 0.3333333333333333#
class matplotlib.hatch.VerticalHatch(hatch, density)[source]#

Bases: HatchPatternBase

set_vertices_and_codes(vertices, codes)[source]#
matplotlib.hatch.get_path(hatchpattern, density=6)[source]#

Given a hatch specifier, hatchpattern, generates Path to render the hatch in a unit square. density is the number of lines per unit square.
