Customized Colorbars Tutorial

This tutorial shows how to build and customize standalone colorbars, i.e. without an attached plot.

A colorbar requires a matplotlib.colorizer.ColorizingArtist which contains a matplotlib.colorizer.Colorizer that holds the data-to-color pipeline (norm and colormap). To create a colorbar without an attached plot one can directly instantiate the base class ColorizingArtist, which has no associated data.

import matplotlib.pyplot as plt

import matplotlib as mpl

Basic continuous colorbar

Here, we create a basic continuous colorbar with ticks and labels.

The arguments to the colorbar call are a ColorizingArtist, the axes where the colorbar should be drawn, and the colorbar's orientation. To crate a ColorizingArtist one must first make Colorizer that holds the desired norm and cmap.

For more information see the colorbar API.

fig, ax = plt.subplots(figsize=(6, 1), layout='constrained')

norm = mpl.colors.Normalize(vmin=5, vmax=10)

colorizer = mpl.colorizer.Colorizer(norm=norm, cmap="cool")

fig.colorbar(mpl.colorizer.ColorizingArtist(colorizer),
             cax=ax, orientation='horizontal', label='Some Units')

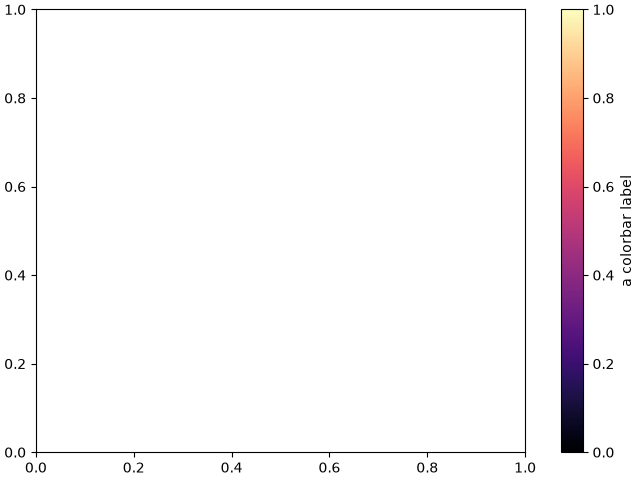

Colorbar attached next to a pre-existing axes

All examples in this tutorial (except this one) show a standalone colorbar on its own figure, but it is possible to display the colorbar next to a pre-existing Axes ax by passing ax=ax to the colorbar() call (meaning "draw the colorbar next to ax") rather than cax=ax (meaning "draw the colorbar on ax").

fig, ax = plt.subplots(layout='constrained')

colorizer = mpl.colorizer.Colorizer(norm=mpl.colors.Normalize(0, 1), cmap='magma')

fig.colorbar(mpl.colorizer.ColorizingArtist(colorizer),
             ax=ax, orientation='vertical', label='a colorbar label')

Discrete and extended colorbar with continuous colorscale

The following example shows how to make a discrete colorbar based on a continuous cmap. We use matplotlib.colors.BoundaryNorm to describe the interval boundaries (which must be in increasing order), and further pass the extend argument to it to further display "over" and "under" colors (which are used for data outside of the norm range).

fig, ax = plt.subplots(figsize=(6, 1), layout='constrained')

cmap = mpl.colormaps["viridis"]
bounds = [-1, 2, 5, 7, 12, 15]
norm = mpl.colors.BoundaryNorm(bounds, cmap.N, extend='both')

colorizer = mpl.colorizer.Colorizer(norm=norm, cmap='viridis')

fig.colorbar(mpl.colorizer.ColorizingArtist(colorizer),
             cax=ax, orientation='horizontal',
             label="Discrete intervals with extend='both' keyword")

Colorbar with arbitrary colors

The following example still uses a BoundaryNorm to describe discrete interval boundaries, but now uses a matplotlib.colors.ListedColormap to associate each interval with an arbitrary color (there must be as many intervals than there are colors).

We also pass additional arguments to colorbar:

• To display the out-of-range values on the colorbar, we use the extend argument in the colorbar() call. (This is equivalent to passing the extend argument in the BoundaryNorm constructor as done in the previous example.)

• To make the length of each colorbar segment proportional to its corresponding interval, we use the spacing argument in the colorbar() call.

fig, ax = plt.subplots(figsize=(6, 1), layout='constrained')

cmap = mpl.colors.ListedColormap(
    ['red', 'green', 'blue', 'cyan'], under='yellow', over='magenta')
bounds = [1, 2, 4, 7, 8]
norm = mpl.colors.BoundaryNorm(bounds, cmap.N)

colorizer = mpl.colorizer.Colorizer(norm=norm, cmap=cmap)

fig.colorbar(
    mpl.colorizer.ColorizingArtist(colorizer),
    cax=ax, orientation='horizontal',
    extend='both',
    spacing='proportional',
    label='Discrete intervals, some other units',
)

Colorbar with custom extension lengths

We can customize the length colorbar extensions, on a colorbar with discrete intervals. To make the length of each extension the same as the length of the interior colors, use extendfrac='auto'.

fig, ax = plt.subplots(figsize=(6, 1), layout='constrained')

cmap = mpl.colors.ListedColormap(
    ['royalblue', 'cyan', 'yellow', 'orange'], over='red', under='blue')
bounds = [-1.0, -0.5, 0.0, 0.5, 1.0]
norm = mpl.colors.BoundaryNorm(bounds, cmap.N)

colorizer = mpl.colorizer.Colorizer(norm=norm, cmap=cmap)

fig.colorbar(
    mpl.colorizer.ColorizingArtist(colorizer),
    cax=ax, orientation='horizontal',
    extend='both', extendfrac='auto',
    spacing='uniform',
    label='Custom extension lengths, some other units',
)

plt.show()
